The RB Classic series covers our classical machines primarily for round pipes with a maximum diameter of up to 2,032 mm and up to a pipe weight of 20 tonnes. This series is also suitable for square & rectangular pipes. The maximum dimensions for square & rectangular pipes can be seen in the table of technical data.
Thanks to numerous technical optional extras, these technologically complex machines can be individually adapted to customer's specific needs. The various machines of the RB Classic series can be equipped with up to 7 CNC axes. The 7th CNC axis is necessary for cutting square & rectangular pipes. Detailed information can be supplied on request.

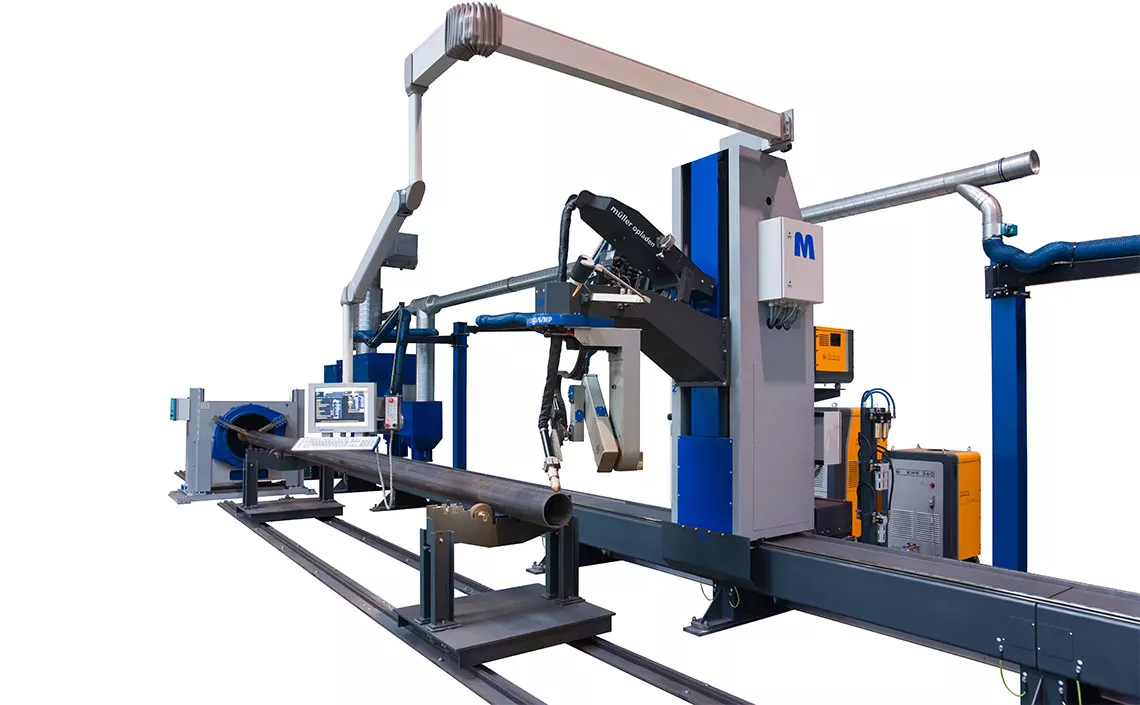

with 6 CNC axes for round pipes with a maximum diameter of 812 mm inclusive of the Kjellberg HiFocus 360i plasma cutting system, oxy-fuel cutting system, stationary multi-point extraction system, height-adjustable chuck and fixed-height pipe carriage

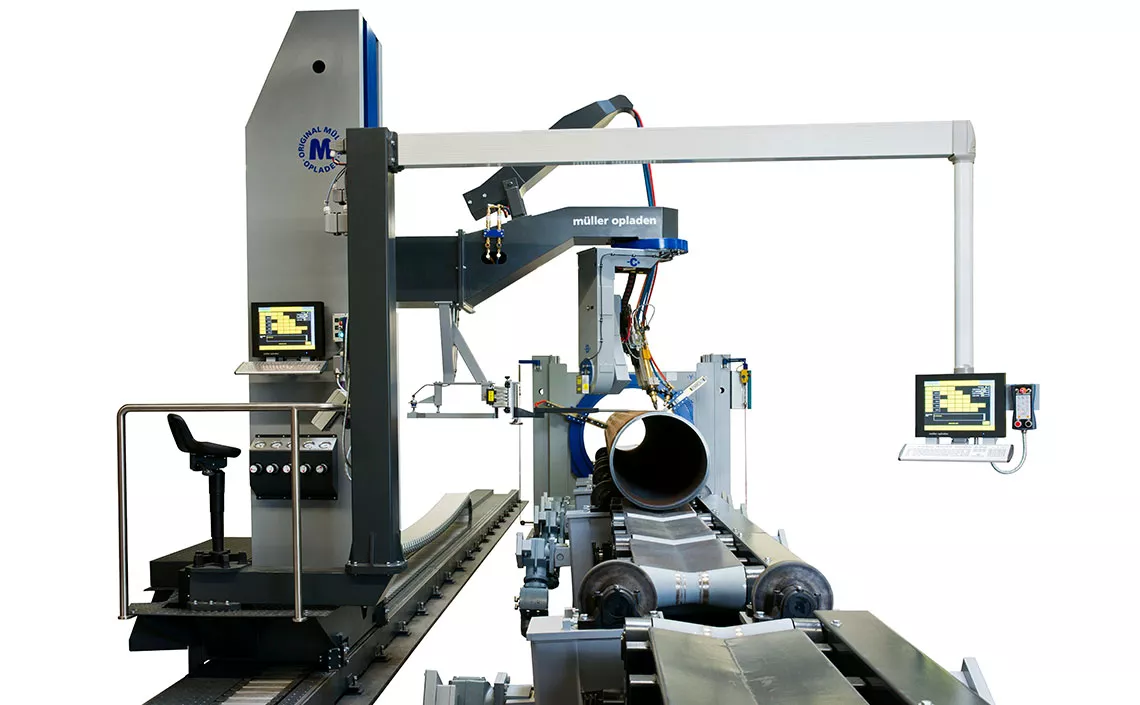

with 7 CNC axes for round pipes with a maximum diameter of 1,220 mm and square & rectangular pipes of 420 mm x 420 mm maximum inclusive of the Kjellberg HiFocus 360i plasma cutting system, oxy-fuel cutting system, height-adjustable chuck and fixed-height pipe carriage

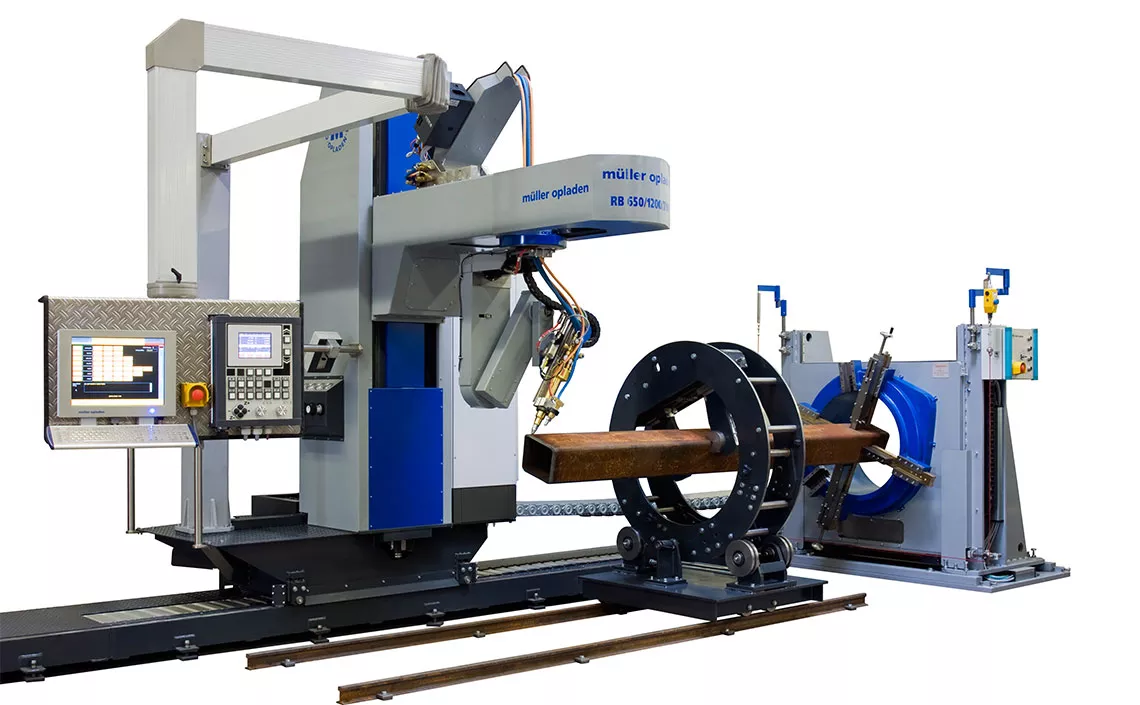

with 6 CNC axes for round pipes with a maximum diameter of 1,524 mm inclusive of the Hypertherm HPR400XD plasma cutting system, oxy-fuel cutting system, stationary multi-point fume extraction > system and motorized conveyors for infeed, cutting and outfeed
| Technical information / Machine series: | RB 400/600/6 Classic |
RB 400/800/6 Classic |
RB 650/1200/6 Classic |
RB 950/1500/6 Classic |
RB 950/2000/6 Classic |
|---|---|---|---|---|---|
| Weight of standard machine in kg: | 7,000 | 7,500 | 9,000 | 11,000 | 13,000 |
| Number of CNC axes: | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 |
| Max. workpiece weight in kg: | 12,000 | 12,000 | 12,000 | 15,000 | 20,000 |
| Min. - max. clampable round pipe diameter in mm: | 50 - 610 | 50 - 812 | 50 - 1,220 | 80 - 1,524 | 80 - 2,032 |
| Max. size of chuck opening in mm: | 400 | 400 | 650 | 950 | 950 |
| Min. - max. clampable square & rectangular pipes dimension in mm: | 100 x 100/ 260 x 260 |
100 x 100/ 260 x 260 |
100 x 100/ 420 x 420 |
100 x 100/ 640 x 640 |
100 x 100/ 640 x 640 |
| Min. - max. clampable beams width in mm: | - | - | - | - | - |
| Min. - max. clampable diameter for dished ends in mm: | - | - | - | - | - |
| Min. - max. cuttable workpiece length in mm: * | 300** - 18,000 | 300** - 18,000 | 300** - 18,000 | 300** - 18,000 | 300** - 18,000 |
| Min. - max. wall thickness in mm for cutting with oxy-fuel /plasma in mm: * | 5-150 / 1-80 |
5-150 / 1-80 |
5-150 / 1-80 |
5-150 / 1-80 |
5-150 / 1-80 |
| Max. torch angle in °: *** | +/- 70 / 45 | +/- 70 / 45 | +/- 70 / 45 | +/- 70 / 45 | +/- 70 / 45 |
* With torch in vertical position
** With additional clamping device up to 150 mm (depending on pipe parameters)
*** Up to 55° when special plasma cutting sources are used
